LINE BORING HYDRAULIC POWER UNIT
Multilec Engineering has been involved in the line boring Industry and have manufactured HPU control panels for a number of hydraulic companies. From this experience we have developed in conjunction with Danfoss an offering to the market that is fit for purpose.

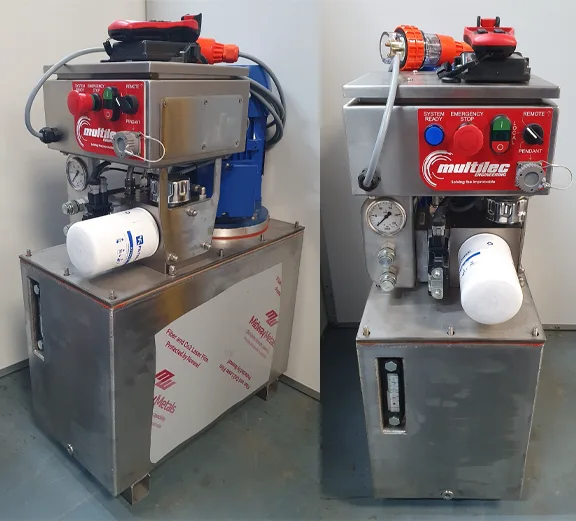

Line Boring Hydraulic Power Unit and Control Panel (Single Output)
- 5m supply lead 32Amp or 20Amp 4 pin plug, customer to specify, no neutral required.
- 5.5kW Electric Motor with DOL Starter (20kVa Genset Requirement 3Phase ~415VAC 50Hz)
- Constant HP/Torque Output Pump
Max 38Lpm @ 65Bar, 15Lpm @ 170Bar - Supply Phase and Motor Rotation Protection Relay
- Stainless Steel Electrical Control Enclosure
- Extra Low Voltage 24VDC Control Circuit
- Danfoss Controller and PVG Assembly
- Stainless Steel oil tank reservoir and lid
- 68 Grade hydraulic oil full tank and return oil filter element included
- 3/4" BSP Male Bulk Head Connection points for A and B output ports

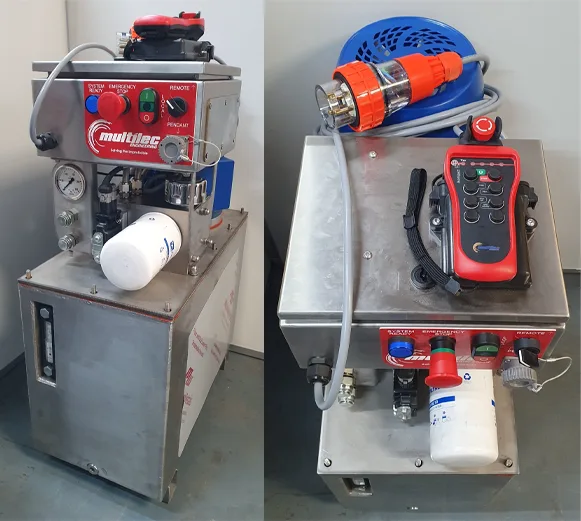

Local Control Enclosure Functions
- Local Emergency Stop
- Local / Remote / Pendant Operation Selector Switch
- Local Motor Start / Stop with Motor Running Green LED Indication
- Local System Ready Blue LED Indication
- Local (Manual) Valve Control Lever for Forward / Reverse with Speed Up / Down

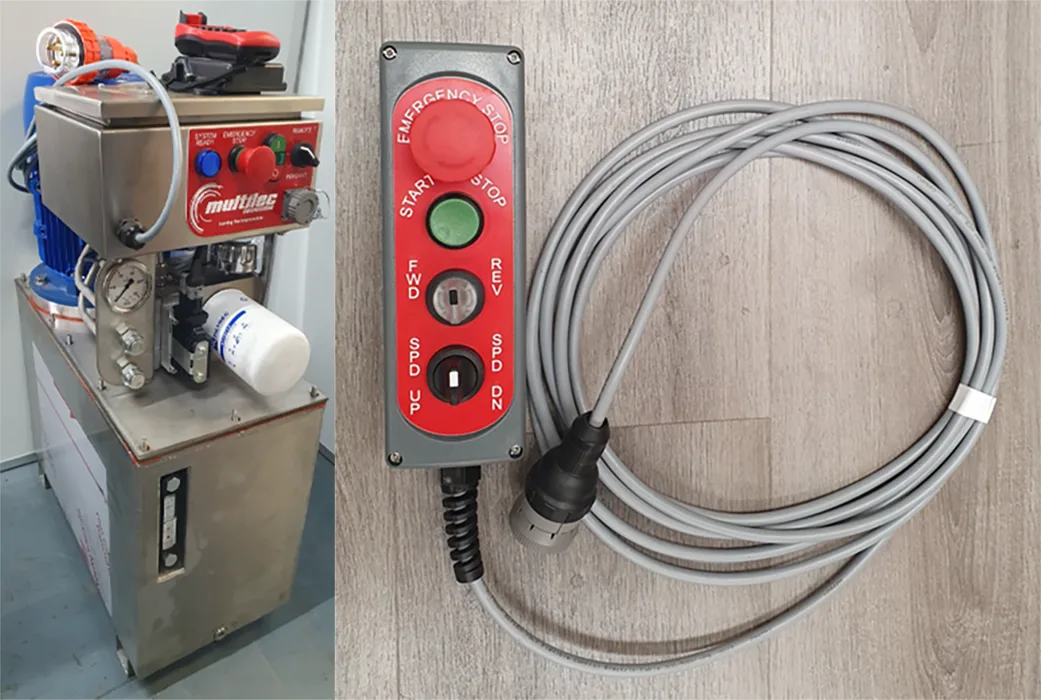

Cable Lead Wired Pendant control (5 meter cable length) and Wireless Radio Remote control (Quantity 1 Remote Controller using AAA batteries) with the following functions
- Emergency Stop
- Motor Start/Stop
- Hydraulic Forward
- Hydraulic Reverse
- Hydraulic Speed Up
- Hydraulic Speed Down
Wet weight 175kg
Dimensions 850Tall 600Long 300Wide
What our client say about our Line Boring Hydraulic Power Unit
FAQs
What aftersales/breakdown support is offered?
We’re always reachable by phone and have field service techs that can attend locally in Perth easily, or remotely if required.
What is the lead time on spare parts should I have a breakdown?
We keep a spare part of every component on shelf at our premises in Perth.
What type of Warranty is given?
Our line boring power units are covered under Australian Consumer Law (ACL), which is part of the Competition and Consumer Act 2010.
Extended warranty is available on request to meet your requirements.
What are the recommended service intervals?
The oil filter element is recommended to be replaced every 6 months.
The hydraulic oil (ISO 68 Grade) should be fully drained and replaced every 12 months with typical usage, or more frequently if used in dirty environments.
Oil and filter should be changed immediately if it shows any signs of contamination, such as being milky (water-contaminated), foamy (aerated), dark/sludgy, or if residue is visible in the oil level sight gauge.
How much electrical power is required to run the power unit?
The system draws a max amperage current of 13Amps, at a supply voltage of 415VAC 50Hz.
Can I run the power unit from a generator supply?
Yes, minimum sizing required is 20kVa at a supply voltage of 415VAC 50Hz.
Can I run the power unit from welder generator combination?
Yes however ensure the the output is 50Hz, some American market welder generator combinations (Miller for example) output 60Hz.
The power unit is not configured to run on 60Hz, please advise us if this is required and the power unit can be configured to suit.
Does the power unit have a cooler?
No it does not, these are designed to operating without a cooler and do so in remote areas with no problems.
Ensure the power unit is not used in direct sunlight and has free flowing air circulating.
If no free flowing air (inside of truck for example) we recommend fitting a fan in the area to circulate air.
What are the weight and dimensions?
Wet weight (full of oil) 175kg.
Dimensions 850mm Tall 600mm Long 300mm Wide.
